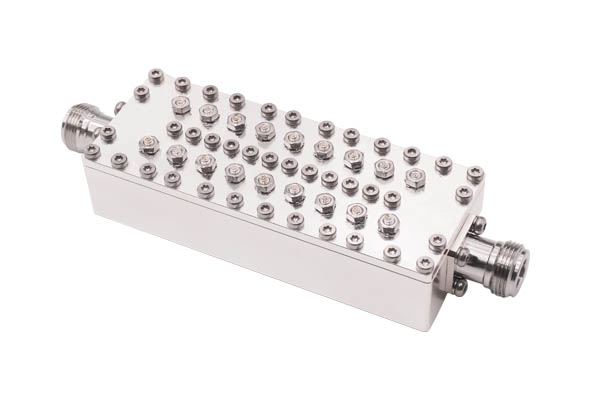

CatalogueApex Microwave has launched a high-performance Cavity filter designed for 5150-5250MHz & 5725-5875MHz dual-band applications, which is widely used in Wi-Fi 5/6, radar systems and other communication fields.
The filter has a low insertion loss of ≤1.0dB and a return loss of ≥18dB, Rejection 50dB @ DC-4890MHz/50dB @ 5512MHz/50dB @ 5438MHz/50dB @ 6168.8-7000MHz, effectively shielding interference and ensuring pure signal transmission. At the same time, the filter supports a maximum RMS power input of 100W to meet the needs of high-power wireless communication.
The product structure is 110mm x 43mm x 24mm (30mm Max), equipped with an N-type female interface, the surface is silver-treated, suitable for a wide temperature environment of -20℃ to +85℃, and has excellent stability.
Supports customization of frequency, interface and size parameters on demand
Provides three-year quality assurance to ensure long-term safety
Post time: Jun-27-2025
