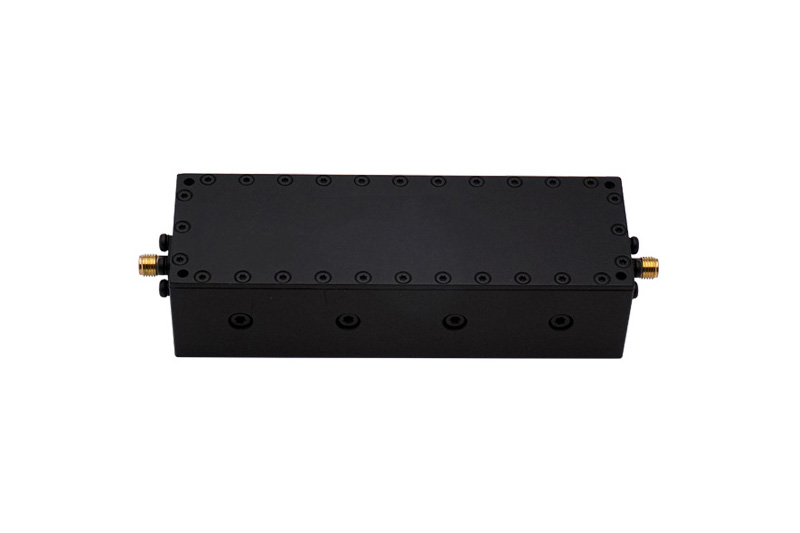

CatalogueIn modern wireless communication systems, filters are key RF devices to ensure clear and stable signal transmission. Apex Microwave’s 900-930MHz cavity filter is designed for applications with high requirements for filtering accuracy and anti-interference performance, and is widely used in high-frequency equipment such as communication base stations, radar systems, and RF front ends.
he filter supports an operating frequency range of 900-930MHz, with **≤1.0dB low insertion loss**, ≤0.5dB in-band fluctuation, and **≥50dB strong suppression capability** (@DC-800MHz and 1030-4000MHz), effectively isolating out-of-band interference and ensuring stable and reliable signal transmission in the core frequency band. The standing wave ratio is ≤1.5:1, the standard impedance is 50Ω, and the rated power can reach 10W, meeting the needs of medium and low power applications.
The product uses an SMA-Female interface, with a size of 120×40×30mm (maximum height 46mm), a compact structure, and is suitable for integration into miniaturized communication equipment. The housing is painted black, has good electromagnetic shielding effect, and complies with RoHS 6/6 environmental protection standards. The operating temperature range is -30℃ to +70℃, suitable for a variety of industrial and outdoor application environments.
In addition, Apex Microwave supports customized services, and can flexibly adjust parameters such as frequency, size, and interface type according to the specific needs of customers to ensure the best match between the filter and the system. All products are provided with a three-year quality guarantee, so that customers can use them with peace of mind.
For more information, please visit: Apex Microwave official website https://www.apextech-mw.com/ or contact email: sales@apextech-mw.com
Post time: Apr-07-2025
