SMT Isolator 450-512MHz: Small size, high stability RF signal isolation solution

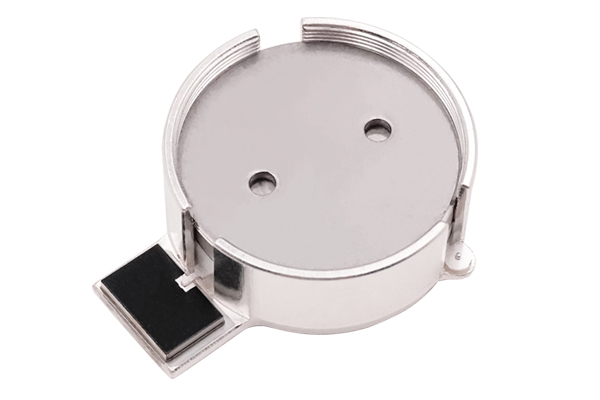

Apex Microwave’s SMT isolator model ACI450M512M18SMT is designed for the 450-512MHz frequency band and is suitable for medium and low frequency scenarios such as wireless communication systems, RF front-end modules, and industrial wireless networks. The SMT isolator adopts a patch structure, which has the advantages of small size, stable performance, and easy integration. It is especially suitable for space-constrained RF circuit systems.

The typical insertion loss of the SMT isolator is within 0.6dB, the isolation is ≥18dB, the return loss is ≥18dB, and it supports 5W of forward and reverse power. While ensuring unidirectional signal transmission, it effectively suppresses reverse interference and improves the reliability and stability of the system.

In terms of structure, the SMT isolator has an outer size of 28.0mm x 10.0mm, and the packaging form is a standard surface mount (SMT) interface, which is suitable for automated batch welding and miniaturized module design. The operating temperature range is -20°C to +75°C, and the materials comply with RoHS 6/6 environmental standards, which is suitable for the long-term operation requirements of various industrial and communication systems.

Apex Microwave supports multi-band and multi-specification SMT isolator customization services, covering a full range of SMD RF isolators from low frequency to microwave bands, which are widely used in communication base stations, DAS systems, industrial equipment, emergency communications and wireless instruments.

For more product details, please visit the official website: https://www.apextech-mw.com/ or contact email: sales@apextech-mw.com
