Stripline Isolator 2-6GHz: Compact Isolation Solution for High-Frequency RF Systems

The Stripline Isolator launched by Apex Microwave is designed for high-frequency RF systems in the frequency range of 2-6GHz and is widely used in wireless communications, radar systems, RF front-end modules, and microwave signal processing. With its compact packaging structure, stable electrical performance, and high reliability, this Stripline isolator is an ideal choice for high-density RF system integration.

This Stripline isolator operates in the range of 2-6GHz with a maximum insertion loss of 1.0dB (at room temperature) and a maximum insertion loss of 1.5dB at extreme temperatures (-40℃, 2-2.5GHz). The isolation is above 12dB, and the return loss is also greater than 12dB, which effectively ensures the directivity and signal integrity of the system. The product supports 50W forward power and 40W reverse power, meeting the requirements of most medium and high power RF modules.

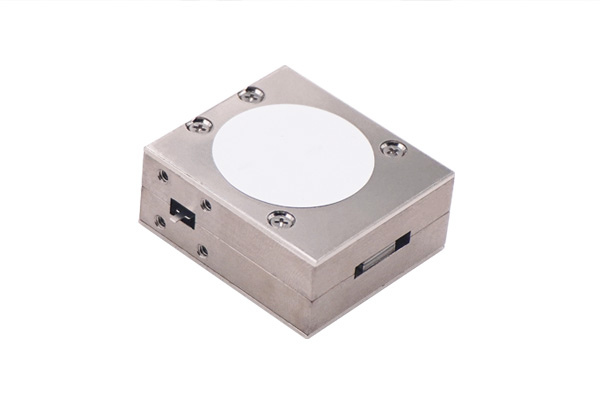

The Stripline isolator has a size of 34mm×30mm×15mm, and the connection end adopts a standard stripline design with a contact size of 2mm×1.2mm×0.2mm, which is very suitable for embedded RF modules, miniaturized front ends and high-frequency communication equipment.

The Stripline isolator adopts a clockwise conduction design, with an operating temperature range of -40°C to +70°C. The material complies with the RoHS 6/6 standard, ensuring the environmental friendliness of the product and its adaptability to the global market.

Apex Microwave supports customized development of Stripline isolators based on customer needs, including frequency fine-tuning, isolation enhancement, special interface size customization, etc., to help customers flexibly layout different RF application scenarios.
