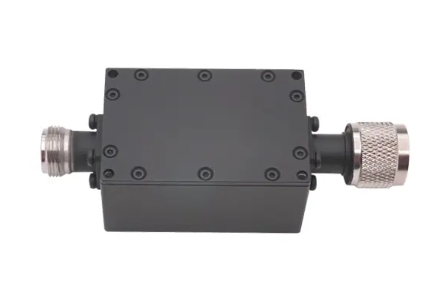

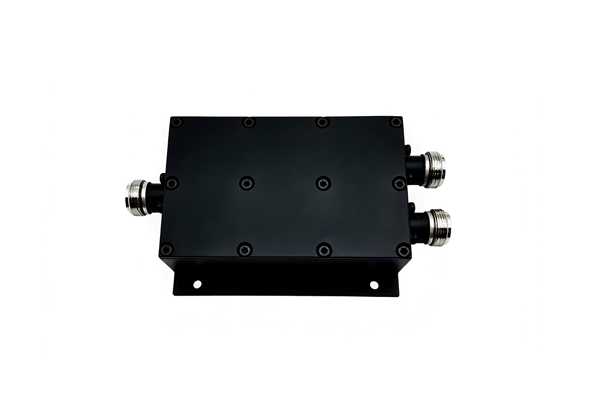

Application Scenarios of LC Filters

Lumped Element Filter（LC  filters）are mainstream components for low/medium frequency RF and power filtering. Featuring compact structure, low insertion loss and customizable parameters, they deliver cost-effective solutions for various power, RF and electronic circuits. Their key applications fall into four categories:

1. Power Filtering

Installed at input and output terminals of switching power supplies, DC-DC converters and UPS to eliminate ripples and high-frequency harmonics. Widely adopted for photovoltaic inverters, industrial power supplies and portable medical devices.

2. RF & Private Network Communication

Deployed in LoRa/BLE IoT modules, smart meters, walkie-talkies and industrial radios for frequency selection and spurious suppression, ideal for overseas industrial IoT and security communication equipment.

3. Audio Signal Processing

Used in audio amplifiers and speaker crossover circuits to split audio frequencies and improve sound quality for consumer audio products.

4. EMI Suppression

Built into EV T-BOX, vehicle wireless modules and industrial controllers to curb conductive and radiated interference and help products meet international EMC standards.

APEX Microwave provides full ODM & OEM customization of LC filters. Our experienced engineering team tailors specs including frequency range, dimension and electrical performance to match unique project demands across automotive, telecom and industrial sectors. Samples are available for verification before mass production.
